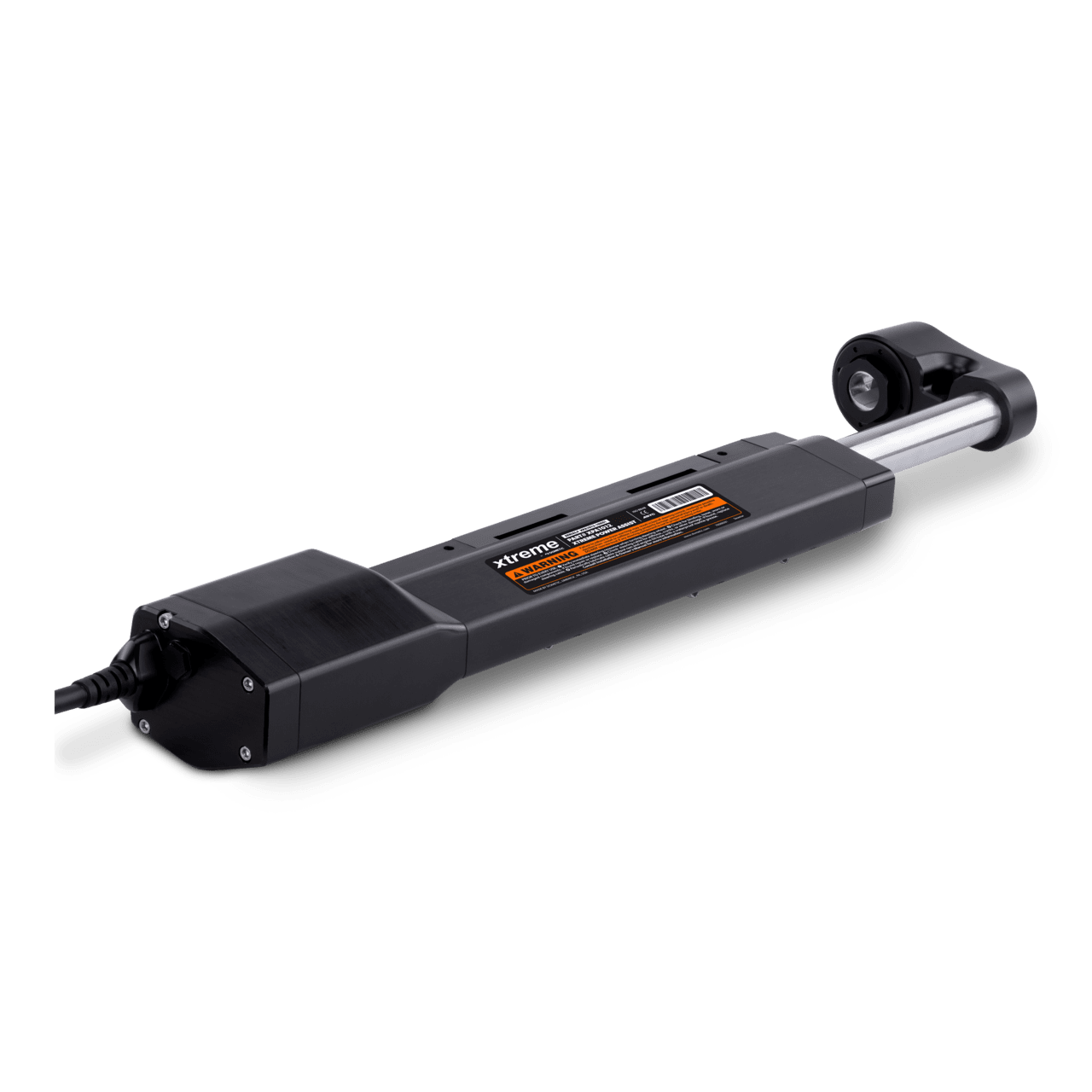

The Xtreme Power Assist adds the smooth, easy control of electric power-assisted steering to a wide range of popular boats. For instance, pontoons, runabouts, RIBS, aluminum fishing boats and center consoles. Best of all, this is an affordable, easy-to-install solution that offers a more enjoyable driving experience.
Let Pier 21 Marine be your one-stop shop for all your boating needs. Because, we have a state-of-the-art facility, our technicians are factory trained and we have the best warranty in the business.
Power Assist on Wildlife and Fisheries Boat
Features
Significantly reduced steering effort. As a result, it provides a car-like driving experience for mechanically steered boats.
Engineered to fit a wide range of single-engine, mechanically steered outboard boats from 90-200HP.
Integrates with any existing SeaStar rack or rotary cable steering system. Therefore, there is no need to install new steering to take advantage of this new technology.
Designed as a self-contained, plug-and-play system that easily mounts to all major outboard brands. To clarify, it integrates with the boat’s existing mechanical steering in less than 30 minutes.
Built-in Fail-Safe System automatically reverts to mechanical steering in the event of a system failure. S a result, it has a failsafe.
Xtreme Power Assist Specifications
General
SKU number
9600029372
Model
Steering Accessories
Legacy Factory Item Number
XPA1012P
Product Description
Xtreme Power Assist with 12′ harness
Dimensions
Dimensions product depth, [“]
3 1/4
Dimensions product height, [“]
2.70
Dimensions product width, [“]
12
Dimensions product length, [‘]
2
Performance
Actuation Stroke Length, [“]
9.25
Horse Power Rating, [hp]
200
Downloads
Dometic XPA – Installation and Operating Manual AMER(en)
Installation and Operating Manual Download
Xtreme Power Assist – Leaflet
Datasheet Download
